In the chemical industry, maintaining the cleanliness and performance of processing equipment is vital to ensuring operational efficiency, product quality, and safety. Residues such as polymers, reaction by-products, corrosive agents, and fine particulates can accumulate on the surfaces of chemical apparatus, causing blockages, reducing heat transfer efficiency, or leading to contamination. Traditional cleaning methods often fall short when it comes to complex geometries or sensitive components. This is where ultrasonic cleaning machines, specifically designed for chemical equipment, offer a powerful and efficient solution. Understanding how these machines work can help manufacturers and technicians better integrate them into routine maintenance and cleaning procedures.
1. What Is Ultrasonic Cleaning?
Ultrasonic cleaning is a process that uses high-frequency sound waves (typically between 20 kHz and 200 kHz) to agitate a liquid cleaning solution. This agitation produces microscopic bubbles through a phenomenon known as cavitation. When these bubbles collapse, they release intense energy that dislodges contaminants from surfaces, even in hard-to-reach crevices and blind holes. For chemical equipment—often made of stainless steel, glass, or specialty alloys—ultrasonic cleaning provides a non-invasive and highly effective way to remove deposits without damaging the substrate.
2. The Key Components of an Ultrasonic Cleaning System
Chemical equipment ultrasonic cleaning machines generally consist of the following components:
- Ultrasonic Generator: Converts electrical energy into high-frequency signals.
- Transducers: Usually bonded to the tank or immersed in the liquid, they convert electrical signals into ultrasonic vibrations.
- Cleaning Tank: A robust vessel that holds the cleaning solution and the equipment to be cleaned.
- Cleaning Solution: A water-based or chemical-based liquid designed to enhance the cleaning process, depending on the type of residue.
- Temperature and Time Controls: Adjustable settings for optimizing cleaning cycles based on the material and type of contamination.

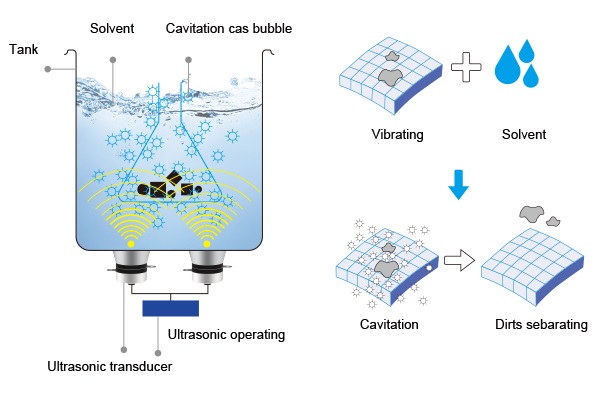

The Key Components of an Ultrasonic Cleaning System
3. Step-by-Step Working Principle
Step 1: Loading the Equipment
Chemical equipment parts, such as valves, nozzles, pipes, or heat exchanger components, are placed into the ultrasonic cleaning tank. Care is taken to ensure they do not touch the bottom directly, which could interfere with cavitation.
Step 2: Filling the Tank
The tank is filled with a suitable cleaning fluid—either a neutral or mildly acidic/alkaline solution, depending on the type of residue to be removed. Surfactants or solvents may be added to aid the process.
Step 3: Activation of Ultrasonic Waves
Once the machine is turned on, the ultrasonic generator sends electrical signals to the transducers, which convert these signals into mechanical vibrations. These vibrations create rapid pressure changes in the liquid, generating countless microscopic cavitation bubbles.
Step 4: Cavitation and Cleaning
The real cleaning happens during cavitation. When the tiny bubbles implode near the surface of submerged objects, they release focused energy that lifts dirt, residues, and contaminants off the surface—even from tiny pores, crevices, and weld seams.
Step 5: Rinsing and Drying
After the ultrasonic cycle ends (which can range from a few minutes to over half an hour), the components are rinsed with deionized or clean water and then dried using air, heat, or vacuum depending on the process requirements.
Recommended image prompt: “Industrial ultrasonic cleaning tank in operation, with metal chemical equipment parts submerged and ultrasonic waves visualized through bubble formation.”
4. Why Ultrasonic Cleaning Is Effective for Chemical Equipment
Deep Cleaning of Complex Geometries
Chemical processing equipment often has intricate designs with internal cavities, spirals, threads, or narrow tubing. Traditional methods like manual scrubbing, pressure washing, or chemical soaking might not clean these areas effectively. Ultrasonic cleaning, by contrast, reaches every surface evenly.
Non-Damaging and Gentle on Equipment
Despite the intense energy involved in cavitation, the ultrasonic cleaning process is non-abrasive. It removes deposits without scratching, etching, or weakening the substrate—essential for maintaining the integrity of precision-engineered parts.
Time and Resource Efficient
Ultrasonic cleaning significantly reduces the time required for equipment maintenance. It minimizes labor and uses less chemical cleaner than traditional methods. Automation and batch processing capabilities make it suitable for large-scale chemical facilities.
Versatility Across Materials
Whether cleaning stainless steel reactors, borosilicate glassware, ceramic-lined components, or polymer parts, ultrasonic systems can be customized with frequency, power, and cleaning solutions appropriate for different materials.
5. Frequency and Power Selection
The frequency of ultrasonic waves directly influences the cleaning effect:
- Low frequencies (20–40 kHz): Generate larger cavitation bubbles, ideal for removing heavy residues like caked-on polymer films or scale.
- Medium frequencies (40–80 kHz): Provide balanced cleaning and are used for moderately delicate parts or where both power and detail are required.
- High frequencies (100–200 kHz): Produce gentle cavitation suitable for fine structures, precision components, or highly sensitive materials.
Chemical equipment ultrasonic cleaning machines often include sweep frequency or pulse functions to ensure uniform cleaning and prevent standing waves or dead zones in the cleaning tank.
6. Applications in the Chemical Industry
Chemical ultrasonic cleaning machines are used in a range of cleaning and maintenance scenarios:
- Heat exchangers: Removing scale, biofilm, and particulate matter from plates or tubes.
- Valves and seals: Degreasing and removing polymer build-up without damaging seals.
- Reaction vessels: Cleaning residues from inner walls of reactors.
- Glassware and sampling equipment: Achieving particle-free surfaces for analytical integrity.
- Pilot plant components: Quick cleaning turnaround for experimental setups.
Some facilities even incorporate inline ultrasonic systems into continuous processes to clean parts without disassembling equipment.
7. Enhancements and Modern Innovations
Modern ultrasonic systems include a variety of enhancements:
- Degassing Functions: Removing dissolved gases from the liquid to improve cavitation stability.
- Digital Controls and Display: Real-time feedback on power, temperature, and frequency.
- Modular Transducer Packs: Allowing flexible installation for cleaning large or oddly shaped parts.
- Closed-Loop Systems: Integrating filtration and fluid recovery to reduce waste and cost.
These innovations make ultrasonic cleaning not only effective but also sustainable and easy to integrate into standard chemical plant maintenance cycles.
The Role of Ultrasonic Cleaning in Chemical Plant Efficiency
Ultrasonic cleaning technology offers an advanced, reliable, and economical solution for maintaining cleanliness in chemical processing environments. By thoroughly removing contaminants while preserving equipment integrity, these machines help prevent cross-contamination, reduce downtime, and extend the service life of critical components. Their adaptability and automation-friendly features make them a cornerstone of modern chemical plant maintenance, whether for daily cleaning or turnaround preparation.
