Ultrasonic cleaning has become a widely adopted solution across sectors such as medical sterilization, laboratory maintenance, precision manufacturing, and even daily household care. Its effectiveness stems from a unique blend of high-speed performance, deep cleaning capability, and gentle, non-contact operation. Gaining insight into the underlying principles and internal structure of ultrasonic cleaners helps users apply this technology more efficiently and confidently across various applications.

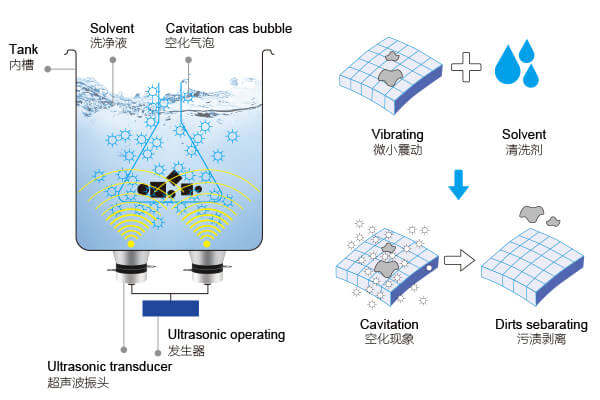

The Principle Behind Ultrasonic Cleaning: The Power of Cavitation
The core mechanism of ultrasonic cleaning lies in a phenomenon known as cavitation. When a high-frequency sound wave (typically 20–120 kHz) is introduced into a liquid via an ultrasonic transducer, it creates millions of microscopic bubbles. These bubbles rapidly expand and collapse, generating localized bursts of pressure and heat.
This process dislodges contaminants such as grease, dust, oxidation, and microscopic debris from surfaces—including hard-to-reach crevices and blind holes. Key advantages include:
Deep penetration into fine details and narrow gaps
Non-abrasive cleaning, ideal for delicate items
Even coverage, eliminating manual “missed spots”
Compatibility with a variety of materials like metal, glass, and hard plastics
Core Components of an Ultrasonic Cleaning System
A typical ultrasonic cleaning unit consists of three main components that work in harmony to deliver effective results:
Cleaning Tank
A stainless steel container that holds the cleaning fluid and items. Some models include built-in heaters to improve cleaning efficiency.
Ultrasonic Generator
This converts standard electrical current into high-frequency electrical energy, usually between 20–80 kHz, which is then transmitted to the transducer.

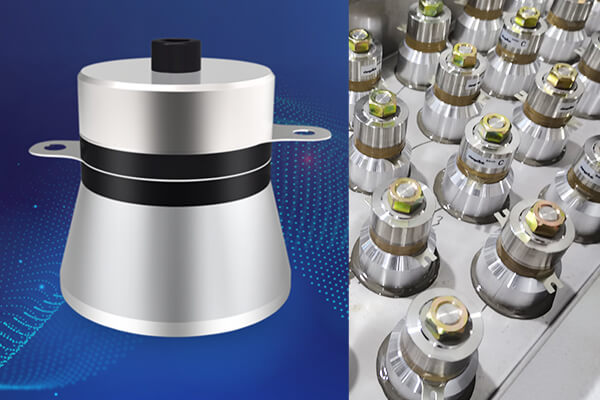

Ultrasonic Transducer
Attached to the tank’s underside, this component transforms the electrical energy into mechanical vibrations, sending ultrasonic waves through the liquid to initiate cavitation.
Together, these elements create a cleaning system capable of addressing both visible dirt and microscopic contaminants without damaging the object’s surface.
What Materials and Items Are Suitable?
Ultrasonic cleaning is remarkably versatile and compatible with a wide range of hard, non-absorbent materials. It is especially effective on surfaces that require precision cleaning without physical contact. Materials that respond well include metals (such as stainless steel, aluminum, titanium, and brass), glass, ceramics, and many rigid plastics that can withstand mild heat and vibration.
This technology excels in removing microscopic contaminants from items with complex shapes, fine details, or internal cavities that are difficult to reach with brushes or cloth. Commonly cleaned items include:
Jewelry – Chains, rings, earrings, and pendants are restored to brilliance by removing oils, oxidation, and debris from intricate settings.
Medical and dental instruments – Scalpels, forceps, orthodontic tools, and surgical probes benefit from pre-sterilization ultrasonic cleaning to eliminate biological residue.
Laboratory equipment – Test tubes, beakers, pipettes, and precision glassware are cleared of chemical and biological contaminants.
Electronic components – Printed circuit boards (PCBs), connectors, and semiconductors can be cleaned of flux, dust, and oils before or after assembly.
Automotive and mechanical parts – Carburetors, injectors, gears, and ball bearings are degreased and cleaned of carbon deposits.
Ultrasonic cleaning is generally not recommended for absorbent, soft, or porous materials like leather, fabric, paper, or wood, as these may absorb water and suffer deformation or damage. With the right combination of cleaning solution, frequency, and temperature, ultrasonic cleaning provides a powerful, precise, and reliable method for maintaining cleanliness across multiple industries.
To maximize cleaning performance and protect both your equipment and items, follow these basic steps:
Preparation – Place objects into a cleaning basket, avoiding direct contact with the tank bottom
Add Cleaning Solution – Fill with water or a recommended water-based detergent to the marked level
Power On – Check connections and system status before starting
Set Parameters – Choose appropriate temperature (ideally 50–65°C) and cleaning time (typically 3–20 minutes)
Start Cleaning – Activate ultrasonic and heating functions; observe for abnormal noise or excessive bubbling
Post-Cleaning – Rinse items thoroughly and dry them with air or soft cloth; drain and clean the tank as needed
Important Tips:
Avoid using harsh acids, bleach, or flammable solvents
Clean delicate or valuable items for short periods and monitor closely
Change the solution regularly to maintain performance
Why Ultrasonic Cleaning Is Widely Adopted
Ultrasonic cleaning has seen widespread adoption across industries due to its ability to deliver deep, uniform, and damage-free cleaning—something that traditional methods often struggle to achieve. Its growing popularity stems from a combination of technological efficiency, material compatibility, and operational convenience that appeals to both industrial users and individual consumers.
One of its most significant advantages is the ability to clean intricate shapes, blind holes, and fine crevices without direct contact. This makes it ideal for objects like jewelry, surgical instruments, electronics, and precision parts where surface integrity is crucial. Ultrasonic cavitation ensures that even the smallest contaminant particles are removed, improving functionality and appearance.
The non-abrasive nature of ultrasonic cleaning also sets it apart—it minimizes wear, avoids scratching, and is gentle on delicate surfaces, such as polished metals, lenses, and coatings. For users in industries like optics, semiconductors, or watchmaking, this is essential.
In terms of efficiency, ultrasonic cleaners can process multiple items at once, greatly reducing cleaning time and labor costs. Automated functions like timed cycles, temperature control, and degassing make the process highly repeatable and suitable for standardized workflows in manufacturing and healthcare.
Ultrasonic cleaning also aligns with sustainability goals. Many systems operate using biodegradable or water-based solutions, reducing the reliance on hazardous solvents. This not only protects the environment but also improves workplace safety and regulatory compliance.
From daily dental tools to aerospace components, ultrasonic cleaning offers a versatile, scalable, and environmentally conscious solution that meets the demands of modern industries. Its consistent performance, low maintenance, and adaptability are key reasons why it has become a mainstay in professional cleaning operations worldwide.

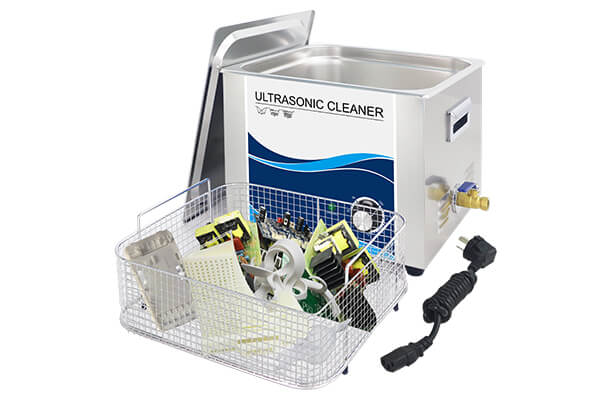

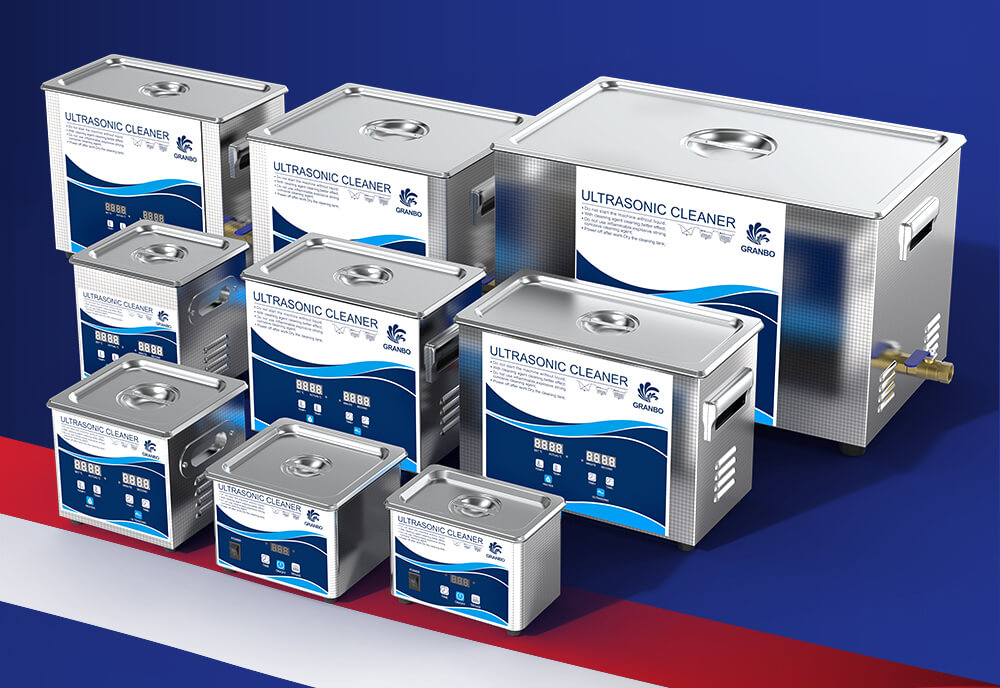

Granbo Ultrasonic Cleaners: Professional Power for Every User
With years of expertise in ultrasonic technology, Granbo offers high-performance cleaning units trusted across laboratories, repair shops, and manufacturing facilities. Granbo systems feature adjustable frequency control, intelligent temperature regulation, and multiple tank sizes to suit every cleaning challenge—from compact jewelry to large mechanical components.
Granbo machines are built with corrosion-resistant materials, durable transducers, and user-friendly interfaces. Whether you’re performing delicate cleaning of silver accessories or degreasing industrial parts, Granbo provides the performance, reliability, and support needed for efficient operation.
Smarter Cleaning Starts with Understanding
Understanding how ultrasonic cleaning works is the first step toward using it more effectively, whether in a laboratory, workshop, clinic, or home setting. By mastering the core principles of cavitation, frequency selection, and solution compatibility, users can unlock the full potential of this advanced technology and ensure both safety and optimal results.
Ultrasonic cleaners offer several key advantages that make them a standout in the field of precision cleaning. They are highly efficient, capable of thoroughly cleaning even the most intricate components in a fraction of the time required by manual methods. Their non-contact nature ensures delicate or finely finished surfaces remain unharmed—ideal for sensitive items like jewelry, optical lenses, and microelectronic parts.
Modern ultrasonic units also come equipped with intelligent temperature controls, adjustable frequency settings, and digital timers, allowing users to tailor the cleaning process to different materials and contamination levels. Some models even support degassing and filtration systems to enhance performance and extend cleaning fluid life.
In addition, ultrasonic cleaning is remarkably cost-effective over time. It reduces the need for manual labor, cuts down on harsh chemical usage, and extends the usable lifespan of cleaned items. With proper use and maintenance, ultrasonic cleaners deliver consistent, professional-level results—making them an essential tool in both industrial and everyday cleaning scenarios.
